Sleeve Anchor Hook Bolt

Sleeve anchor hook bolt with a hook is one of the types of products used to attach all kinds of elements to any base. Without such a bolt, it is impossible to imagine the construction of large suspended structures installed on guy wires. Its design includes the following elements: central bar with hook bolt, washer, spacer sleeve, conical shank, lock-nut.

The hook bolt with metric thread and the collapsible part of its coupling consists of four elements, which contributes to the maximum degree of disclosure, while providing increased fixation.

The sleeve anchor bolt has several varieties:

Sleeve Anchor Hex Bolts Type.

Sleeve Anchor Eye Bolt.

Sleeve Anchor Hook Bolt.

Sleeve Anchor Swing Hook.

▪Material Available – Carbon Steel with zinc plated, Stainless Steel.

▪Custom Sizes - Our unique mass customization manufacturing operation allows us to customize sizes far more easily than any other provider.

▪Custom Finish - We can offer zinc plating, nickel plating, chrome plating, hot deep galvanized, brass plating.

Installation Instructions

1.Make a hole of the right diameter and depth and clean it.

qw3

2.Place the expansion sleeve in the borehole.

qw4

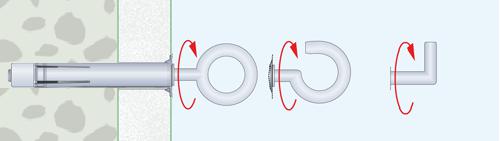

3.Screw the hook into the sleeve until you get clear resistance.

qw5

4.The attachment is ready to accept the load.

Sleeve Anchor Hook Bolt

Carbon steel with yellow zinc plated

Item No.	Size	Wire Diameter	Total Length	Inner eye Diameter	Thread Length	Bag	Carton
		mm	mm	mm	mm	pcs	pcs
21001	M6X45	5.0^±0.1	75⁺²	15^±1	45^±1	200	800
21002	M6X60	5.0^±0.1	90⁺²	15^±1	60^±1	100	700
21003	M8X60	7.0^±0.1	95⁺²	15^±1	60^±1	100	400
21004	M8X80	7.0^±0.1	115⁺²	15^±1	80^±1	100	400
21005	M8X100	7.0^±0.1	135⁺²	15^±1	100^±1	100	300
21006	M10X70	8.7^±0.1	115⁺²	20^±1	70^±1	100	300
21007	M10X80	8.7^±0.1	125⁺²	20^±1	80^±1	100	300
21008	M10X90	8.7^±0.1	135⁺²	20^±1	90^±1	100	300
21009	M10X100	8.7^±0.1	145⁺²	20^±1	100^±1	100	300
21010	M10X120	8.7^±0.1	165⁺²	20^±1	120^±1	100	200
21011	M12X80	10.6^±0.1	135⁺²	25^±1	80^±1	100	200
21012	M12X100	10.6^±0.1	155⁺²	25^±1	100^±1	100	100
21013	M12X120	10.6^±0.1	175⁺²	25^±1	120^±1	100	100

Application

It is used, like an anchor plate, to fix all kinds of heavy structures in a concrete, stone, reinforced concrete or brick base. It is widely used in the construction and household spheres. They fasten various items, for example: curtain rods for curtains and paintings, switches and shelves, lamps and hooks for towels, baseboards and other things.
